Commands

Definition​

Check commands are used by the monitoring engine to check the status of a host or service. Check commands execute plugins. A check command is used in a host template or a service template. If these templates are applied to a host or service, the script called by the command is executed when the host or service is checked, with the options you have defined.

Most commands are provided by the Monitoring Connectors you have installed and are ready to use. However, if these commands do not meet your needs (e.g. they have too many or too few arguments) you can create new ones (custom commands). You need to create one command per plugin and per mode. Custom commands are an advanced feature.

There are four types of command:

  • Notification commands are used by the schedulers to alert the contacts (via mail, SMS, etc.).
  • Check commands are used by the schedulers to verify the status of a host or service.
  • Miscellaneous commands are used by the additional modules (to perform certain actions), by the scheduler for data processing, etc.
  • Discovery commands are used by the schedulers to discover.

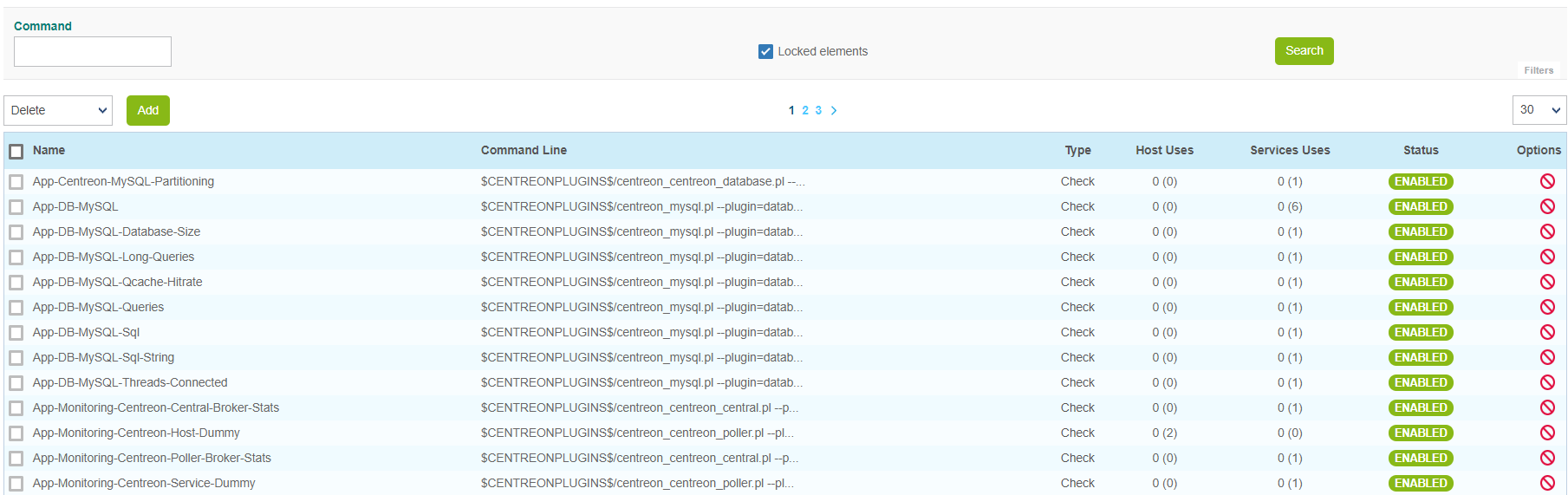

Commands can be configured in the following menu: Configuration > Commands > Commands.

By default, only custom commands (i.e. user-created commands) are displayed. All commands provided by Monitoring Connectors are read-only ("locked") and hidden. Check the "Locked elements" box to show these commands.

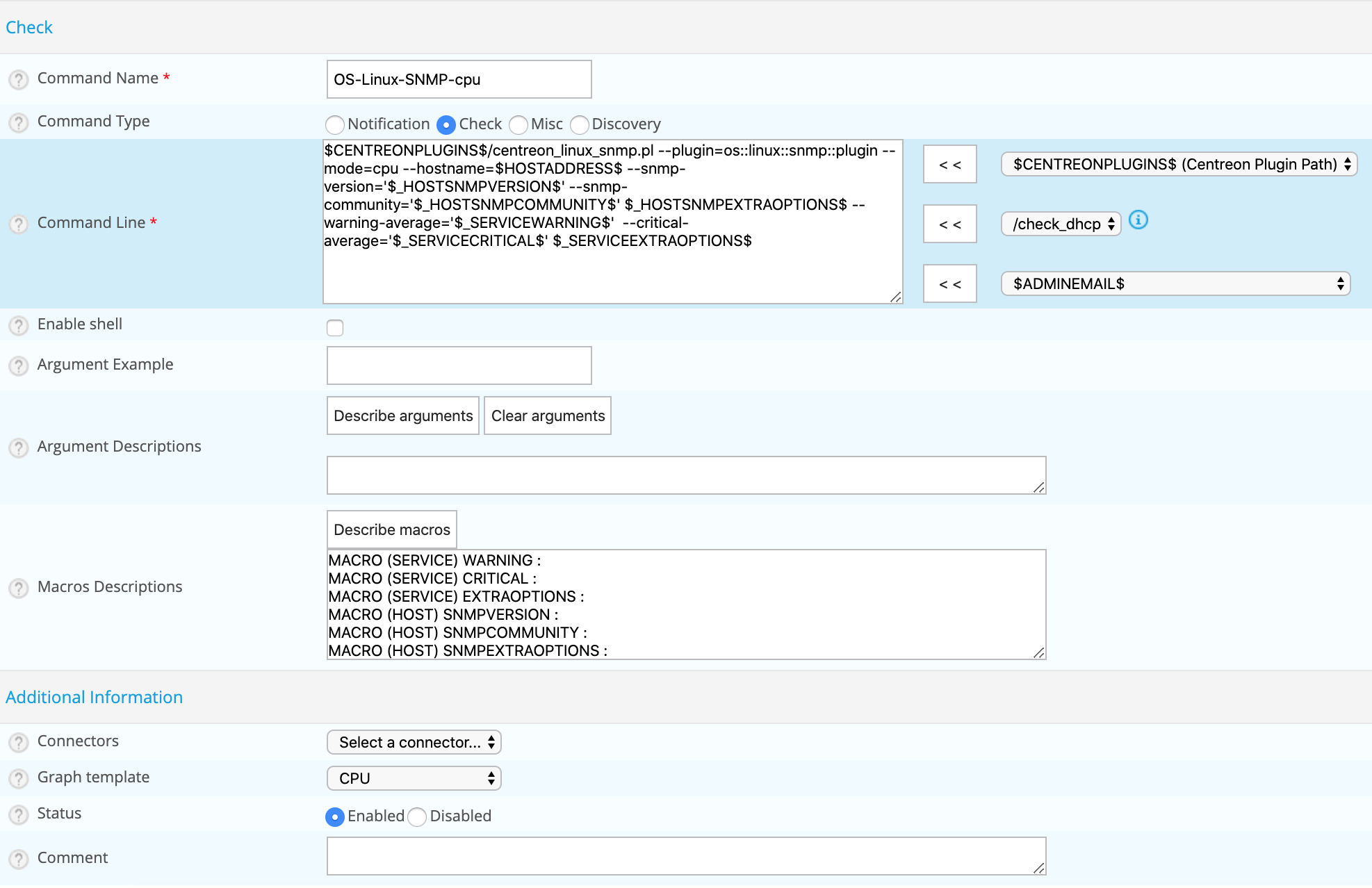

Creating a custom check command​

  1. Go to Configuration > Commands > Commands.

  2. Click Add.

  3. Fill in the following fields:

    • Name: This name will appear in the list of commands in the host and service template creation forms.

    • Command Line: the actual command that will be executed when a check is made. Use the lists on the left to insert variables quickly and/or type your own contents. You need to specify:

      • A macro that represents the path to the script executed by the command (with no filename). For Centreon, use a variable so that Centreon can find the path to the plugins folder on any OS (the variable is defined on the Configuration > Pollers > Global macros page). If you are using your own plugins, specify the path where you have stored the plugins. Default values appear in Poller global macros, but you can also type the path to your own plugin you have stored somewhere else.

      Examples:

      • $CENTREONPLUGINS$ if the plugin you are using is in the same place as Centreon plugins (like centreon_linux_snmp.pl).

      • $USERn$ (where n can be any number from 1 to 256) is an obsolete macro system that should be replaced with custom macros such as $_HOSTxxx$ and $_SERVICExxx$.

      • /custom/path/ if the plugin you are using is in a custom location.

      • create the global macro $MYPLUGINS$  if the path is /custom/path/ on one poller and /alt/path/ on another one. This way you may use the same command for the same plugin found in various places depending on the poller.

      • The name of the plugin you want to use (stored in the path specified in the poller global macro). Examples: centreon_linux_snmp.pl, check_icmp...

      • Any option you want to pass to the plugin in this mode. For Centreon plugins, refer to the documentation of the plugin in the Monitoring Connectors section. Examples: --community=public, --warning=1, --verbose...

      • Instead of hardcoding an option value, you can use macros (host macros or service macros) to make your command more generic, but it is not compulsory. The macros's name will appear in the configuration form for the host or service so that you can give it a specific value for each host or service you use it with. You can use Standard macros, or create you own custom macros. Exampls: --hostname='$HOSTADDRESS$', --warning='$_SERVICEWARNING$', --community='$_HOSTSNMPCOMMUNITY$'...

    • Enable shell syntax: check this box if your command uses shell functions (pipes, redirects, wildcards...). Note that commands requiring the shell slow down the monitoring server.

    • Optimization connectors: use the Perl Connector or the SSH Connector to reduce the consumption of resources of the plugin. The Perl connector can be used with all commands provided by Centreon that use Perl plugins (.pl). It is not compatible with commands that use check_icmp and check_nrpe.

  4. Click Save. The command now appears in the Check command list in the host or service template configuration pages.

Using a custom check command​

Once you have created your custom check command:

  1. Link the command to the host or service template you want: use the Check command field in the host or service template configuration form.
  2. Link this host or service template to the host or service you want: in the configuration form for the host or service, select the template you have linked the command to.
  3. Fill in the correct values for any macros in the configuration form for the host or service.
  4. Deploy the configuration. The host or service appears in the Resources Status page. You can see your custom command in the details panel of the host or service, with the correct values for the macros. Once the check has been executed, you can see the output of the command here too.
  5. Add the command to the command whitelist of the poller that will run the check.

Command whitelist​

For security reasons, you can restrict which commands the monitoring engine of a poller (and the Centreon Monitoring Agent) is allowed to execute by defining a command whitelist. By default, Centreon does not apply any whitelist: all commands are allowed.

Add a command to the whitelist​

  1. Log in as root to the poller that will run the commmand.

  2. Edit (or create vim /etc/centreon-engine-whitelist/my-whitelist.yml) the my-whitelist.yml file. (You can create as many whitelist files as you want in this directory.)

  3. Make sure the correct access rights are defined on all whitelist files:

    chown root:centreon-engine /etc/centreon-engine-whitelist/my-whitelist.yml
    chmod 0640 /etc/centreon-engine-whitelist/my-whitelist.yml
    chown root:centreon-engine /etc/centreon-engine-whitelist
    chmod 750 /etc/centreon-engine-whitelist

  4. Use a regex to define which commands to authorize. Example:

whitelist:
    regex:
  	 - \/usr\/lib(64)?\/nagios\/plugins\/.*
  	 - \/usr\/lib(64)?\/nagios\/plugins\/.check_.*
       - \/opt\/my_plugins\/my_custom_plugin\.py .*
cma-whitelist:
default:
  regex:
    - \/usr\/lib(?:64)?\/nagios\/plugins\/.*
    - \/usr\/lib(?:64)?\/centreon\/plugins\/check_centreon_bam.*
    - \"C:\/Program Files\/Centreon\/Plugins\/centreon_plugins.exe\"\s+.+
    - ^\{\s*"check":".*\}$
    - \/usr\/bin\/echo\s+Host\s+alive
    - cmd\.exe\s+\/C\s+echo\s+.*

The whitelist block defines the commands that can be executed by the poller.

The first two lines must always be present in the “whitelist” block; they correspond to Centreon commands.

The cma-whitelist block defines the commands that can be executed by the CMA agent.

In the cma-whitelist block, you can specify whitelists by host if necessary. The syntax is as follows:

whitelist:
  regex:
	 - \/usr\/lib(64)?\/nagios\/plugins\/.*
	 - \/usr\/lib(64)?\/nagios\/plugins\/.check_.*
	 - \/opt\/my_plugins\/my_custom_plugin\.py .*
cma-whitelist:
  default:
    regex:
      - \/usr\/lib(?:64)?\/nagios\/plugins\/.*
      - \/usr\/lib(?:64)?\/centreon\/plugins\/check_centreon_bam.*
      - \"C:\/Program Files\/Centreon\/Plugins\/centreon_plugins.exe\"\s+.+
      - ^\{\s*"check":".*\}$
      - \/usr\/bin\/echo\s+Host\s+alive
      - cmd\.exe\s+\/C\s+echo\s+.*
  hosts:
    - hostname:Host_1
    regex:
      - ...

    - hostname:Host_2
    regex:
      - ...

Use .* to include all arguments in the regex. The .* at the end of the regex allows it to handle any arguments it may contain. Bear in mind that the format must be strictly indentical to the one above (including indents).

If you have not authorized your custom command in a whitelist, it will say so in the Information column of the Resources Status page.

Optimization connectors​

SSH connector​

The Centreon SSH Connector is free software from Centreon available under the Apache Software License version 2 (ASL 2.0). It speeds up the execution and saves resources consumption by checks over SSH when used with Centreon Engine by avoiding to perform all the authentication transactions at every check.

Installation​

Centreon recommends using its official packages. Most of Centreon’s endorsed software is available as RPM and DEB packages.

Run the following commands as a privileged user:

dnf install centreon-connector-ssh

Optimization connectors​

Perl connector​

The Centreon Perl Connector is free software from Centreon available under the Apache Software License version 2 (ASL 2.0). It speeds up execution of Perl scripts when used with Centreon Engine by avoiding compiling the Perl code at every check.

Installation​

Centreon recommends using its official packages. Most of Centreon’ endorsed software are available as RPM and DEB packages.

Run the following commands as a privileged user:

dnf install centreon-connector-perl

Less fork mode​

Beta feature: This mode has not yet been validated for all Centreon plugins. Test it on a limited number of pollers with your specific plugins before deploying at scale in production.

In addition to avoiding Perl recompilation, the Perl connector supports a less fork mode. In standard mode, a child process is spawned for each check then immediately killed. In less fork mode, child processes are reused across multiple checks, dramatically reducing CPU usage.

Performance measurements (50 hosts × 10 services each):

ModeCPU usage
Engine without connector85%
Perl connector – standard (fork per check)38%
Perl connector – less fork (process reuse)11%

How it works

The --child-max-reuse-script option controls how many checks a child process can execute before being killed:

  • Default value: 1 (each child dies after one check — classic fork behavior)
  • Less fork mode: set to a higher value, e.g. 100

The connector also automatically kills a child process if it exceeds the following thresholds:

  • --child-max-memory-increase-percent (default: 10%): memory increase since first check
  • --child-max-fd-increase-percent (default: 10%): file descriptor increase since first check
  • --child-max-thread (default: 10): number of threads created
  • --idle-child-ttl (default: 15 min): idle time without any check

Usage

The Perl Connector Less Fork connector is pre-configured on your poller. To benefit from less fork mode, go to Configuration > Commands > Checks and select Perl Connector Less Fork in the Connectors field of each check command you want to optimize, if it is not already set.

Per-command override

You can also override the reuse limit for a specific command by inserting the keyword directly in the command line, between the script path and the script's arguments:

/usr/lib/nagios/plugins/check_something.pl --child-max-reuse-script 5 --arg1 value1
