Secure your MAP platform

This chapter describes advanced procedures to secure your Centreon MAP platform.

If you want to use MAP in HTTPS, you must both secure your Centreon platform and MAP. Follow this procedure if you need to secure your Centreon platform.

Mistakes when editing configuration files can lead to malfunctions of the software. We recommend that you make a backup of the file before editing it and that you only change the settings advised by Centreon.

Configure HTTPS/TLS on the MAP server

HTTPS/TLS configuration with a recognized key

This section describes how to add a recognized key to the Centreon MAP server.

If you want to create an auto-signed key and add it to your server, please refer to the following section

You will require:

• A key file, referred to as key.key.
• A certificate file, referred to as certificate.crt.

1. Access the Centreon MAP server through SSH and create a PKCS12 file with the following command line:

   openssl pkcs12 -inkey key.key -in certificate.crt -export -out keys.pkcs12

2. Import this file into a new keystore (a Java repository of security certificates):

keytool -importkeystore -srckeystore keys.pkcs12 -srcstoretype pkcs12 -destkeystore /etc/centreon-map/map.jks

3. Set below parameters inside /etc/centreon-map/map-config.properties:

centreon-map.keystore=/etc/centreon-map/map.jks
centreon-map.keystore-pass=xxx

Replace the keystore-pass value "xxx" with the password you used for the keystore and adapt the path (if it was changed) to the keystore.

HTTPS/TLS configuration with an auto-signed key

Enabling the TLS mode with an auto-signed key will force every user to add an exception for the certificate before using the web interface.

Enable it only if your Centreon also uses this protocol.

Users will have to open the URL:

https://<MAP_IP>:9443/centreon-map/api/beta/actuator/health

The solution we recommend is to use a recognized key method, as explained above.

1. Move to the the Java installation folder:

cd $JAVA_HOME/bin

2. Generate a keystore file with the following command:

keytool -genkey -alias map -keyalg RSA -keystore /etc/centreon-map/map.jks

The alias value "map" and the keystore file path /etc/centreon-map/map.jks may be changed, but unless there is a specific reason, we advise keeping the default values.

Provide the needed information when creating the keystore.

At the end of the screen form, when the "key password" is requested, use the same password as the one used for the keystore itself by pressing the ENTER key.

3. Set below parameters inside /etc/centreon-map/map-config.properties:

centreon-map.keystore=/etc/centreon-map/map.jks
centreon-map.keystore-pass=xxx

Replace the keystore-pass value "xxx" with the password you used for the keystore and adapt the path (if it was changed to the keystore).

Activate TLS profile of Centreon MAP service

1. Stop Centreon MAP service:

systemctl stop centreon-map-engine

2. Edit the file /etc/centreon-map/centreon-map.conf, adding ,tls after prod profile:

RUN_ARGS="--spring.profiles.active=prod,tls"

3. Set the centreon.url inside the /etc/centreon-map/map-config.properties file to use HTTPS instead of HTTP:

centreon.url=https://<server-address>

4. Restart Centreon MAP service:

systemctl start centreon-map-engine

Centreon MAP server is now configured to respond to requests from HTTPS at port 9443.

To change the default port, refer to the dedicated procedure.

Don't forget to modify the URL on Centreon side in the MAP server address field in the Administration > Extensions > Map > Options menu.

Configure TLS on the Broker connection

An additional Broker output for Centreon Central (centreon-broker-master) has been created during the installation.

You can check it in your Centreon web interface, from the Configuration > Pollers > Broker Configuration, by editing the centreon-broker-master configuration.

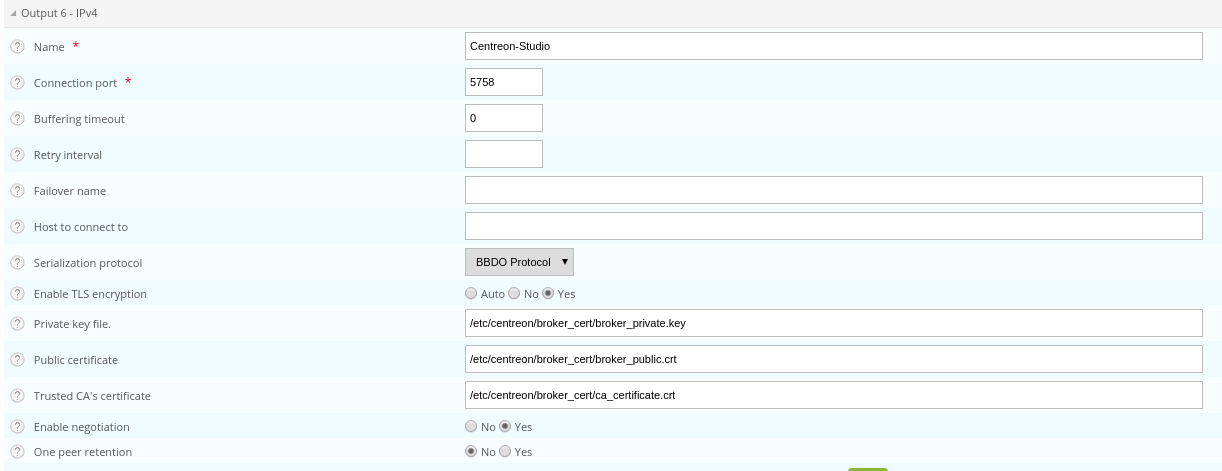

The output configuration should look like this:

Broker configuration

You can enable TLS output and set up Broker's private key and public certificate as described below:

1. Create a self-signed certificate with the following commands:

   openssl req -new -newkey rsa:2048 -nodes -keyout broker_private.key -out broker.csr
   openssl x509 -req -in broker.csr -CA ca.crt -CAkey ca.key -CAcreateserial -out broker_public.crt -days 365 -sha256

2. Copy the private key and the certificate into /etc/centreon/broker_cert/ directory:

   mv broker_private.key /etc/centreon/broker_cert/
   mv broker_public.crt /etc/centreon/broker_cert/

"Trusted CA's certificate" field is optional. If you activate Broker's client authentication by setting this "ca_certificate.crt", then you must setup a keystore for MAP server

You MUST push the new broker configuration and restart the broker after configuration.

MAP server configuration

You must secure your Centreon platform with HTTPS.

Set the centreon.url inside /etc/centreon-map/map-config.properties to use HTTPS instead of HTTP:

centreon.url=https://<server-address>

To enable TLS socket connection with Broker:

broker.tls=true

Configuration with a self signed certificate

If the Broker public certificate is self signed, you must create a trust store containing given certificate or its CA certificate with the following command line:

keytool -import -alias centreon-broker -file broker_public.crt -keystore /etc/centreon-map/truststore.jks

• "broker_public.crt" is Broker public certificate or its CA certificate in PEM format,
• "truststore.jks" is the generated trust store in JKS format,
• a store password is required during generation.

1. Add truststore parameters in /etc/centreon-map/map-config.properties:

centreon-map.truststore=/etc/centreon-map/truststore.jks
centreon-map.truststore-pass=XXXX

Replace the trustStorePassword value "xxx" with the password you used when generate the trust store.

2. Edit the file /etc/centreon-map/centreon-map.conf, and replace ,tls by ,tls_broker after prod profile:

RUN_ARGS="--spring.profiles.active=prod,tls_broker"

"tls_broker" profile implies "tls" profile. So Centreon MAP service serves necessarily HTTPS.

Once you add a truststore, Centreon MAP will use it to validate self-signed certificates. This means that if you use a self-signed certificate for the central server, you must add it to the truststore. If you don't, the Monitoring > Map page will be blank, and the logs (/var/log/centreon-map/centreon-map.log) will show the following error : unable to find valid certification path to requested target.

1. Copy the central server's .crt certificate to the MAP server.

2. Add the certificate to the truststore:

keytool -import -alias centreon-broker -file central_public.crt -keystore /etc/centreon-map/truststore.jks

Configuration with a recognized CA certificate

If the broker public certificate is signed with a recognized CA, the JVM default trust store cacerts (/etc/pki/java/cacerts) will be used. Nothing to configure for Centreon MAP service.

Configure TLS on a MySQL or MariaDB database

This section describes how to enable SSL on a MySQL/MariaDB server and configure a Spring Boot application to connect securely using the certificate authority verification (VERIFY_CA mode).

Note: This procedure covers the VERIFY_CA mode only. In this mode, the server certificate is validated against a trusted Certificate Authority, but the hostname/IP address is not verified. For other SSL verification modes, see the SSL Mode reference section.

• Select the tab corresponding to the database you want to use.

Step 1 - Generate keys and certificates

MySQL

1. Create a directory (/etc/mysql/newcerts in this example) to store your certificate files:

mkdir -p /etc/mysql/newcerts
cd /etc/mysql/newcerts

2. Generate the Certificate Authority (CA). The CA is used to sign both the server and client certificates, establishing a chain of trust.

# Generate the CA private key
openssl genrsa 2048 > ca-key.pem
# Generate the CA self-signed certificate
openssl req -new -x509 -nodes -days 365000 -key ca-key.pem -out ca-cert.pem

3. Generate the server certificate. The server certificate is presented by MySQL to clients during the SSL handshake.

# Generate the server private key and CSR (Certificate Signing Request)
openssl req -newkey rsa:2048 -days 365000 -nodes -keyout server-key.pem -out server-req.pem

# Convert the server key to RSA format (required by MySQL)
openssl rsa -in server-key.pem -out server-key.pem

# Sign the server certificate with the CA
openssl x509 -req -in server-req.pem -days 365000 -CA ca-cert.pem -CAkey ca-key.pem -set_serial 01 -out server-cert.pem

4. Generate the client certificate. The client certificate is used by the application to authenticate itself to MySQL (mutual TLS).

# Generate the client private key and CSR
openssl req -newkey rsa:2048 -days 365000 -nodes -keyout client-key.pem -out client-req.pem
# Convert the client key to RSA format
openssl rsa -in client-key.pem -out client-key.pem
# Sign the client certificate with the CA
openssl x509 -req -in client-req.pem -days 365000 -CA ca-cert.pem -CAkey ca-key.pem -set_serial 01 -out client-cert.pem

5. Verify the certificates. Ensure both certificates are correctly signed by the CA before proceeding.

openssl verify -CAfile ca-cert.pem server-cert.pem client-cert.pem
# Expected output:
# server-cert.pem: OK
# client-cert.pem: OK

MariaDB

1. Create a directory (/etc/mariadb/newcerts in this example) to store your certificate files:

mkdir -p /etc/mariadb/newcerts
cd /etc/mariadb/newcerts

2. Generate the Certificate Authority (CA). The CA is used to sign both the server and client certificates, establishing a chain of trust.

# Generate the CA private key
openssl genrsa 2048 > ca-key.pem

# Generate the CA self-signed certificate
openssl req -new -x509 -nodes -days 365000 -key ca-key.pem -out ca-cert.pem

3. Generate the server certificate. The server certificate is presented by MariaDB to clients during the SSL handshake.

# Generate the server private key and CSR (Certificate Signing Request)
openssl req -newkey rsa:2048 -days 365000 -nodes -keyout server-key.pem -out server-req.pem

# Convert the server key to RSA format (required by MariaDB)
openssl rsa -in server-key.pem -out server-key.pem

# Sign the server certificate with the CA
openssl x509 -req -in server-req.pem -days 365000 \
-CA ca-cert.pem -CAkey ca-key.pem -set_serial 01 \
-out server-cert.pem

4. Generate the client certificate. The client certificate is used by the application to authenticate itself to MariaDB (mutual TLS). Skip this section if you only need REQUIRE SSL.

# Generate the client private key and CSR
openssl req -newkey rsa:2048 -days 365000 -nodes -keyout client-key.pem -out client-req.pem

# Convert the client key to RSA format
openssl rsa -in client-key.pem -out client-key.pem

# Sign the client certificate with the CA
openssl x509 -req -in client-req.pem -days 365000 \
-CA ca-cert.pem -CAkey ca-key.pem -set_serial 01 \
-out client-cert.pem

5. Verify the certificates. Ensure both certificates are correctly signed by the CA before proceeding.

openssl verify -CAfile ca-cert.pem server-cert.pem client-cert.pem
# Expected output:
# server-cert.pem: OK
# client-cert.pem: OK

6. Set the file ownership. MariaDB requires ownership of all certificate files.

Step 2 - Configure the MySQL/MariaDB server

MySQL

1. Set the file ownership. MySQL requires ownership of all certificate files.

Ensure you are using the directory you previously created (/etc/mysql/newcerts in this example).

chown -Rv mysql:root /etc/mysql/newcerts/*

2. Edit the MySQL server configuration. Add the following block to your MySQL server configuration file (typically /etc/mysql/mysql.conf.d/mysqld.cnf):

[mysqld]
ssl-ca   = /etc/mysql/newcerts/ca-cert.pem
ssl-cert = /etc/mysql/newcerts/server-cert.pem
ssl-key  = /etc/mysql/newcerts/server-key.pem
# Restrict to secure TLS versions only
tls_version = TLSv1.2,TLSv1.3

3. Optional - Edit the MySQL client configuration. This allows the mysql CLI tool to connect using SSL as well.

    [mysql]
    ssl-ca   = /etc/mysql/newcerts/ca-cert.pem
    ssl-cert = /etc/mysql/newcerts/client-cert.pem
    ssl-key  = /etc/mysql/newcerts/client-key.pem

4. Restart MySQL.

systemctl restart mysqld

5. Verify SSL is active.

MariaDB

Ensure you are using the directory you previously created (/etc/mariadb/newcerts in this example).

1. Add the following block to your MariaDB server configuration file (typically /etc/mariadb/mariadb.conf.d/50-server.cnf):

[mariadb]
ssl-ca   = /etc/mariadb/newcerts/ca-cert.pem
ssl-cert = /etc/mariadb/newcerts/server-cert.pem
ssl-key  = /etc/mariadb/newcerts/server-key.pem

# Restrict to secure TLS versions only
tls_version = TLSv1.2,TLSv1.3

2. Optional - Edit the MariaDB client configuration. This allows the mariadb CLI tool to connect using SSL as well (/etc/mariadb/mariadb.conf.d/client.cnf):

[client-mariadb]
ssl-ca   = /etc/mariadb/newcerts/ca-cert.pem
ssl-cert = /etc/mariadb/newcerts/client-cert.pem
ssl-key  = /etc/mariadb/newcerts/client-key.pem

4. Restart MariaDB.

systemctl restart mariadb

5. Verify SSL is active.

SHOW VARIABLES LIKE '%ssl%';
-- have_ssl should be YES
-- ssl_ca, ssl_cert, ssl_key should point to your certificate files

Step 3 - Configure the MySQL/MariaDB user

MySQL

1. Require SSL for the user.

ALTER USER 'centreon_map'@'<ip_or_hostname>' REQUIRE SSL;
-- Verify: ssl_type should now show ANY
SELECT user, host, ssl_type FROM mysql.user WHERE user='centreon_map';

2. Grant privileges.

GRANT SELECT, INSERT, UPDATE, DELETE, CREATE, DROP, INDEX, ALTER,
      CREATE TEMPORARY TABLES, LOCK TABLES
  ON `centreon_map`.*
  TO `centreon_map`@`<ip_or_hostname>`;
-- Verify grants
SHOW GRANTS FOR 'centreon_map'@'<ip_or_hostname>';

MariaDB

1. Require SSL for the user.

- SSL only (no client certificate required)
ALTER USER 'centreon_map'@'<ip_or_hostname>' REQUIRE SSL;

-- Or mutual TLS (client certificate required)
-- ALTER USER 'centreon_map'@'<ip_or_hostname>' REQUIRE X509;

-- Verify: ssl_type should now show ANY (for SSL) or X509 (for mTLS)
SELECT user, host, ssl_type FROM mysql.user WHERE user='centreon_map';

2. Grant privileges.

GRANT SELECT, INSERT, UPDATE, DELETE, CREATE, DROP, INDEX, ALTER,
    CREATE TEMPORARY TABLES, LOCK TABLES
ON `centreon_map`.*
TO `centreon_map`@`<ip_or_hostname>`;
-- Verify grants
SHOW GRANTS FOR 'centreon_map'@'<ip_or_hostname>';

Step 4 - Configure JDBC (Spring Boot)

MySQL

From the migration to MariaDB Connector/J, the MySQL connector is no longer bundled. Even when your database server is MySQL, the JDBC URL uses the jdbc:mariadb:// scheme and the org.mariadb.jdbc.Driver driver. MariaDB Connector/J 3.x supports PEM files natively via the serverSslCert parameter directly in the JDBC URL. No Java keystore conversion is needed for SSL simple mode.

A keystore file is only needed for mTLS (client certificate authentication):

File	Contains	Purpose	Required
ca-cert.pem	CA certificate	Lets the driver verify the MySQL server's identity	Yes - Always
keystore.p12	Client cert + private key	Lets MySQL verify the application's identity	Only if REQUIRE X509

Note: mTLS is optional. It is only needed if the MySQL user was created with REQUIRE X509. If the user was created with REQUIRE SSL, only serverSslCert pointing to the CA is needed and the keystore steps below can be skipped.

1. Optional: Create the KeyStore for mTLS.

Note: Skip this step if the MySQL user was created with REQUIRE SSL. It is only required for REQUIRE X509 (mutual TLS). keytool cannot import a PEM private key directly, so we first convert to PKCS12.

1.1. Bundle the client cert and key into a PKCS12 file:

openssl pkcs12 -export \
-in /etc/mysql/newcerts/client-cert.pem \
-inkey /etc/mysql/newcerts/client-key.pem \
-out /etc/mysql/newcerts/client.p12 \
-name mysqlClient \
-passout pass:changeit

2. Set file permissions. Ensure only the user running the Java application can read the keystore files.

chown your_java_user: /etc/mysql/newcerts/keystore.p12
chmod 640 /etc/mysql/newcerts/keystore.p12

3. Set the JDBC URL. Add the following to your configuration file (/etc/centreon-map/*-database.properties):

*.connection.url=jdbc:mariadb://<ip_or_hostname>:3306/centreon_map?sslMode=verify-ca&serverSslCert=/etc/mysql/newcerts/ca-cert.pem&rewriteBatchedStatements=true

Note: sslMode=trust for MySQL 8. On a MySQL 8 server, the sslMode=trust parameter is added by default: the caching_sha2_password authentication hardened setup, replace trust with verify-ca (as shown above) or verify-full. Never use sslMode=disable on MySQL 8, as it would break authentication.

4. Optional — only if mTLS is enabled - (REQUIRE X509). Add options keyStore, keyStorePassword and keyStoreType:

*.connection.url=jdbc:mariadb://<ip_or_hostname>:3306/centreon_map?sslMode=verify-ca&serverSslCert=/etc/mysql/newcerts/ca-cert.pem&keyStore=/etc/mysql/newcerts/keystore.p12&keyStorePassword=changeit&keyStoreType=PKCS12&rewriteBatchedStatements=true

MariaDB

Unlike MySQL Connector/J, MariaDB Connector/J 3.x supports PEM files natively via the serverSslCert parameter directly in the JDBC URL. No Java keystore conversion is needed for SSL simple mode.

A keystore file is only needed for mTLS (client certificate authentication):

File	Contains	Purpose	Required
ca-cert.pem	CA certificate	Lets the driver verify the MariaDB server's identity	Yes - Always
keystore.p12	Client cert + private key	Lets MariaDB verify the application's identity	Only if REQUIRE X509

Note: mTLS is optional. It is only needed if the MariaDB user was created with REQUIRE X509. If the user was created with REQUIRE SSL, only serverSslCert pointing to the CA is needed and the keystore steps below can be skipped.

1. Optional - Create the KeyStore for mTLS.

Skip this step if the MariaDB user was created with REQUIRE SSL. It is only required for REQUIRE X509 (mutual TLS).

keytool cannot import a PEM private key directly, so we first bundle via PKCS12.

1.1. Bundle the client cert and key into a PKCS12 file:

openssl pkcs12 -export \
-in /etc/mariadb/newcerts/client-cert.pem \
-inkey /etc/mariadb/newcerts/client-key.pem \
-out /etc/mariadb/newcerts/keystore.p12 \
-name mariadbClient \
-passout pass:changeit

2. Set file permissions. Ensure only the user running the Java application can read the keystore files.

chown your_java_user: /etc/mariadb/newcerts/keystore.p12
chmod 640 /etc/mariadb/newcerts/keystore.p12

3. Set file permissions. Ensure only the user running the Java application can read the keystore files.

chown your_java_user: /etc/mariadb/newcerts/*.jks
chmod 640 /etc/mariadb/newcerts/*.jks

4. Set the JDBC URL. Add the following to your configuration file (/etc/centreon-map/*-database.properties):

*.connection.url=jdbc:mariadb://<ip_or_hostname>:3306/centreon_map?sslMode=verify-ca&serverSslCert=/etc/mariadb/newcerts/ca-cert.pem&rewriteBatchedStatements=true

5. Optional — only if mTLS is enabled (REQUIRE X509). Add options keyStore, keyStorePassword and keyStoreType:

*.connection.url=jdbc:mariadb://<ip_or_hostname>:3306/centreon_map?sslMode=verify-ca&serverSslCert=/etc/mariadb/newcerts/ca-cert.pem&keyStore=/etc/mariadb/newcerts/keystore.p12&keyStorePassword=changeit&keyStoreType=PKCS12&rewriteBatchedStatements=true

Step 5 - Check Certificate Expiry

MySQL

Certificates generated with -days 365000 are valid for ~1000 years, but this should still be monitored in shorter-lived setups.

1. Check the CA certificate:

openssl x509 -in /etc/mysql/newcerts/ca-cert.pem -noout -dates
# notBefore=...
# notAfter=...

2. Check the server certificate:

openssl x509 -in /etc/mysql/newcerts/server-cert.pem -noout -dates

3. Check the KeyStore (mTLS only):

keytool -list -v -keystore /etc/mysql/newcerts/keystore.p12 -storepass changeit
# Look for: Valid from ... until ...

MariaDB

1. Check the CA certificate.

openssl x509 -in /etc/mariadb/newcerts/ca-cert.pem -noout -dates
# notBefore=...
# notAfter=...

2. Check the server certificate.

openssl x509 -in /etc/mariadb/newcerts/server-cert.pem -noout -dates

3. Check the KeyStore (mTLS only).

keytool -list -v -keystore /etc/mariadb/newcerts/keystore.p12 -storepass changeit
# Look for: Valid from ... until ...

SSL Mode reference

The VERIFY_CA mode is the recommended minimum for production. This table lists other available modes depending on your security requirements:

Mode	Server cert verified	Hostname/IP verified	Use case
DISABLED	No	No	Development only — no encryption
trust	No	No	Encrypts traffic but does not validate the server cert
verify-ca	Yes	No	Used in this procedure — validates the CA chain
verify-full	Yes	Yes	Strictest — also checks hostname/IP against the certificate SAN

Note: If you want to use the verify-full mode, the server certificate must include a Subject Alternative Name (SAN) matching the exact IP or hostname used in the JDBC URL. The CN field alone is not sufficient for IP-based connections.
