Monitoring non-public user journeys (closed beta)

A private Synthetic Monitoring Zone (STM Zone) allows you to monitor your user journeys on internal domains or networks specific to your organization using a probe deployed inside your infrastructure.

Prerequisites​

  • A machine inside your infrastructure to host the probe. The machine must be able to access the application you will monitor.
  • The Docker credentials provided by Centreon. The credentials are sent by Centreon using a secure Keeper link. Save these credentials in your own safe.
  • A user journey configured on the internal application to monitor.

Step 1: Create a new STM zone​

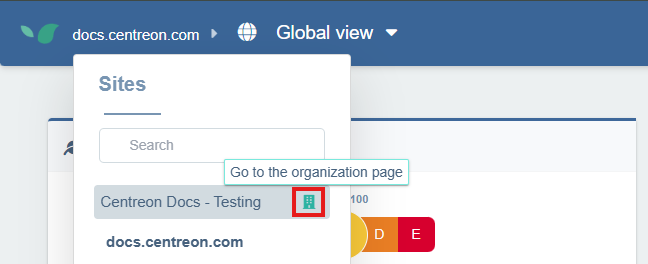

  1. From the Global View, open the site selector in the top-left corner and select your organization’s page.


  1. On your organization’s configuration page, click the Synthetic Monitoring Zones tab.

  2. Click + New Synthetic Monitoring Zone. Give the zone a meaningful name (e.g., Paris Office) then click + Create.

Your new zone now appears in the list.

Step 2: Associate a probe to the STM zone​

  1. Click Associate a probe to the right of your zone. A window opens with 2 Docker commands:

  2. Use the first command to log into the Centreon Docker registry with the credentials provided by Centreon

docker login docker.centreon.com/centreon-dem-beta

Step 3: Create and launch the probe​

  1. To create and launch the probe, execute the second command you obtained at step 2.

  2. Refresh the page: once launched, the probe is automatically saved and appears to the right of the associated zone in the Synthetic Monitoring Zones list.

Step 4: Associate the zone with a user journey​

  1. Go to Configuration and select the User Journeys tab.

  2. On the journey you want to run from your private zone, click on the three dots on the right, then click on Advanced.

  3. In the Advanced configuration window, scroll down to the Synthetic Monitoring Zones section. Your private zone appears under Private Zones. Select it and click Save.

After a short while, the probe will have executed its first check and your internal journey monitoring will be operational. You can analyze it just like a regular user journey.
